Produits COTS conçus par GACI Technologies
Cartes électroniques
3U VPX 24-28V Power Supply
|
Technical Data
|
Technical Data
|
|---|---|
|
Output voltage
|
Power / Current |
|
+3V3
|
42W / 12.7 A |
|
+3V3_AUX
|
8W / 2.6 A |
|
+5V
|
60W / 12 A |
|
+12V
|
140W / 13.3 A |
Systèmes fanless
CRC3-HME - 3U VPX Versatile Rugged Computer
|
Technical Data
|
Technical Data
|
|---|---|
|
Processor
|
Up to 8 Core™ Xeon® D-1500 series Processor |
|
Memory
|
Up to 32 GB soldered DDR4 with ECC |
|
Switching
|
Up to ten 1000BaseT Ethernet ports, one 10Gb Ethernet optional Built-in Radius client to cooperate with the Radius servers RFC 3748 Extensible Authentication Protocol (EAP) RCF 3826 SNMPv3 |
|
O/S
|
Linux, Windows (Others OS on request) |
|
Boot Device
|
Solid State Drive, Onboard NAND Flash |
|
Power Supply
|
28 VDC [18-36 range] MIL-STD-1275D compatible |
|
Environment
|
MIL-STD-810 / MIL-STD-461 |
|
Temperature
|
-40°C to 71°C operating |
|
Power dissipation
|
Up to 200W at full payload |
|
Weight / Dimensions
|
8,3 kg at full payload / 180 x 150 x 250 mm |
|
Storage
|
2.5” extractible SSD up to 4 TB |
|
Cyber Security
|
TPM 2.0 |
|
Serial ports
|
(8) Programmable RS-232/422/485 synchronous & asynchronous channels |
|
ARINC429/717 (Optional)
|
(16) Programmable ARINC429 Rx & Tx (2) Tx/Rx ARINC 717 Channels (8) Programmable Avionics Discrete I/O Channels |
|
MIL-STD-1553 (Optional)
|
Up to 2 Dual Redundant MIL-STD-1553 Channels |
|
Video
|
Inputs: 3G-SDI, HD-SDI, STANAG 3350, CoaXPres (Optional) Outputs: 1 x DVI |

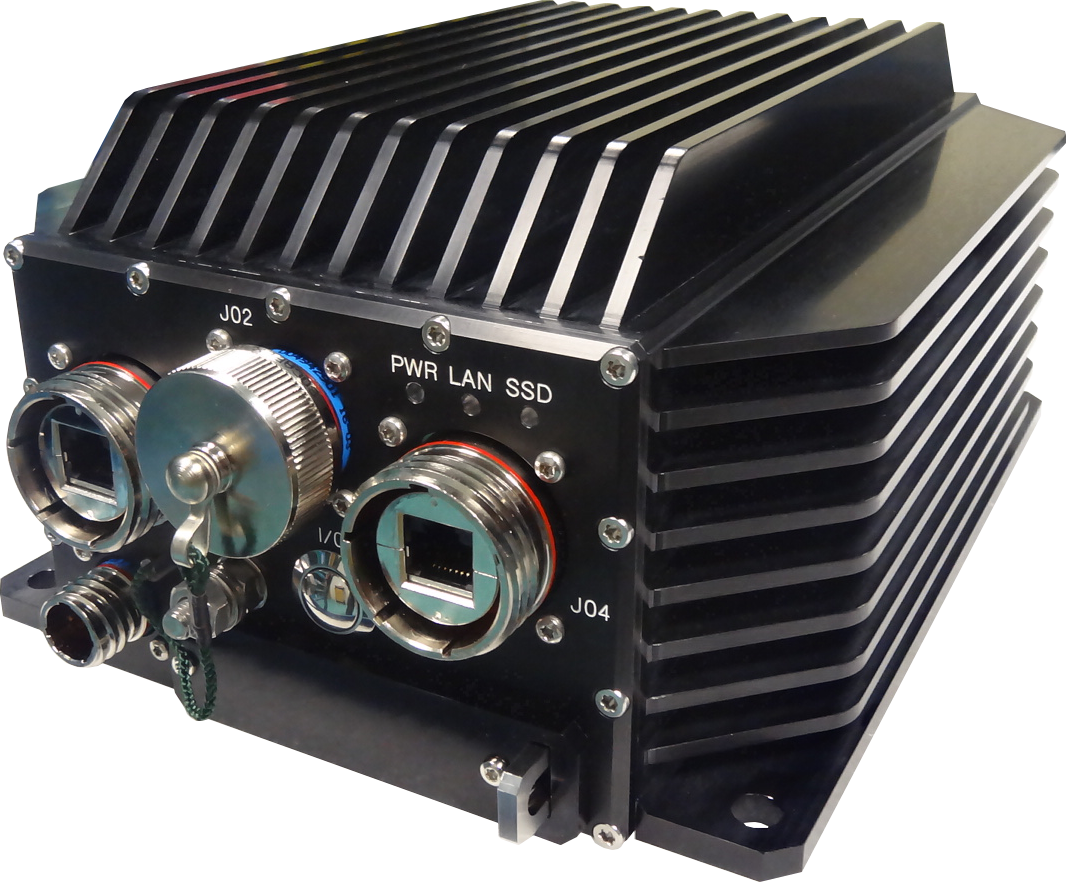

CRC3-HE 3U Compact computer family
|
Technical Data
|
Technical Data
|
|---|---|
|
Processor
|
Intel® Core™ i7 / Xeon™ |
|
Memory
|
Up to 32 GB DDR4 SDRAM, with ECC |
|
O/S
|
Linux, Windows (Others OS on request) |
|
Power Supply
|
28 VDC with up to 50 msec Hold-up / MIL-STD-1275D compatible |
|
Environment
|
MIL-STD 810 and MIL-STD 461 |
|
Connectors
|
Military connectors |
|
Temperature
|
-40°C to 71°C |
|
Weight / Dimensions
|
6 kg at full payload / 180 x 110 x 230 mm |
|
Ethernet switch port
|
10 ports 10/100/1000 Mbps with auto negociation and auto MDIX |
|
Standard Protocols
|
IPv4 / v6 support / VLANs / IGMP / QoS / Port mirroring / Jumbo frame (MTU up to 9600) |
|
Serial I/O
|
1x RS232 |
|
USB
|
2x USB 2.0 |
|
Graphics (Optional)
|
One DVI ouput |
CRC3-VME - 6U Conduction cooled computers for harsh environments
|
Technical Data
|
Technical Data
|
|---|---|
|
Dimensions
|
88.5 x 329 x 349 mm (2U compatible) |
|
Weight
|
8 kg |
|
Temperature
|
-40°C to 71°C |
|
Shocks
|
MIL-STD-901 |
|
Vibration
|
MIL-STD-810 |
Systèmes ventillés
VULCAIN - Airborne High Power Computer
|
Technical Data
|
Technical Data
|
|---|---|
|
Form Factor
|
¾ ATR – low depth |
|
Processing
|
Core i7 multiple core, Multiple SBC capabilities, up to 5 |
|
O/S
|
Linux, Windows |
|
Boot Device
|
Compact Flash, Solid State Drive, USB |
|
Storage
|
Solid State Drive(s) 1 Fixed |
|
SSD Capacities
|
Up to 4TB |
|
Network
|
Up to 2x10 GbE & 12x1000GbE Ethernet ports, L2/L3 switches |
|
Power Supply
|
28 VDC 400W, with up to 50msec Hold-up |
|
Environment
|
DO-160 certified |
|
Weight
|
12kg |
|
Signal processing / Acquisition (optional)
|
Various FPGA and DSP boards |
|
Avionic / Vetronics ports (optional)
|
MIL-STD1553, ARINC429, CANbus, RS links, discretes |
|
Video acquisition & compression (optional)
|
3G-SDI, H264/H265 compression |
|
Graphics (Optional)
|
GPGPU capability upon request |
DEPSIC - Set of 3 cases for deployment of digital solutions in harsh conditions
Data, Power and Cooling systems for standalone use
The DEPSIC solution consists of 3 different cases. One contains all the digital equipment necessary for a mission, the second one is a cooler, and the third one gives all the energy to the 2 others. It can be used in all difficult environment, as an standalone system.
